When using Office UI Fabric React (OUIFR) components in SPFx projects, if you analyse the bundle structure you will notice that OUIFR components take up a lot of space which leads to increased bundle size.
First, make sure you have an SPFx library project as well as a "consumer" SPFx project containing webparts (or extensions). Instructions on how to create this are in the Microsoft docs: https://docs.microsoft.com/en-us/sharepoint/dev/spfx/library-component-tutorial
The code for this post is also available on GitHub if you want to have a look: https://github.com/vman/spfx-lib-components-ouifr
![]()
In the index.ts file of the library component, include the new component to be exported:
Next, in the config/config.json file of the library component, make sure that the entry point is pointing to /lib/index.js
Make sure that the library component is referenced in the consumer webpart e.g. through npm link or by using a monorepo manager like rush or lerna.
More details on using npm link in this in the Microsoft docs: https://docs.microsoft.com/en-us/sharepoint/dev/spfx/library-component-tutorial
![]()
If there are multiple SPFx components loaded on the page which depend on OUIFR components, the size of each bundle will be affected, as by default the OUIFR components are included in each SPFx bundle.
One way to mitigate this issue is to include all your custom components (which depend on OUIFR) into an SPFx library component and then consume the library component from SPFx webparts and extensions. This will make sure that if you have reusable custom components, they won't be loaded multiple times on the page if multiple SPFx webparts (or extensions) are consuming them.
Let's see how to achieve this. We will be working with SPFx 1.9.1 which contains the GA version of Library Components:
Let's see how to achieve this. We will be working with SPFx 1.9.1 which contains the GA version of Library Components:
1) Create SPFx Library and Consumer component structure
First, make sure you have an SPFx library project as well as a "consumer" SPFx project containing webparts (or extensions). Instructions on how to create this are in the Microsoft docs: https://docs.microsoft.com/en-us/sharepoint/dev/spfx/library-component-tutorial
The code for this post is also available on GitHub if you want to have a look: https://github.com/vman/spfx-lib-components-ouifr
2) Create a new custom react component which internally uses Office UI Fabric React

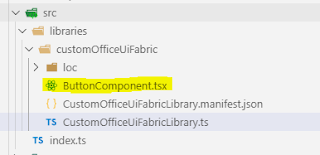

In the library component project, create a new react component in a new file e.g. ButtonComponent.tsx
Here are the contents of the custom react component:
3) Update the index.ts file
In the index.ts file of the library component, include the new component to be exported:
4) Update config.json
Next, in the config/config.json file of the library component, make sure that the entry point is pointing to /lib/index.js
This step was not necessary in SPFx 1.8.2-plusbeta but seems there is a bug in SPFx 1.9.1. I have created a GitHub issue here:
5) Update the consumer web part
Make sure that the library component is referenced in the consumer webpart e.g. through npm link or by using a monorepo manager like rush or lerna.
More details on using npm link in this in the Microsoft docs: https://docs.microsoft.com/en-us/sharepoint/dev/spfx/library-component-tutorial
And finally, in your consumer SPFx react webpart, you can reference the custom component:
When you deploy both the SPFx packages in the app catalog and then add them on a page, you will see different bits of code being loaded separately:
