Microsoft recently launched the Boards feature in Delve, with which you can create Pinterest like boards and add content to them. You can add documents from your SharePoint sites as well as OneDrive for Business sites. Here is a great introduction to the functionality: http://blogs.office.com/2015/01/07/introducing-boards-office-delve-new-way-organize-share-work/
I have been playing around a bit with this feature and have some interesting things to share. So Lets have a look at how this has been implemented under the hood.
I have been playing around a bit with this feature and have some interesting things to share. So Lets have a look at how this has been implemented under the hood.
1) The same Signals API which I have blogged about here is used in boards. AJAX requests are sent to the /_api/signalstore/signals endpoint when any operations are made in Delve (eg. add document to board)
2) Boards are internally referred to as "Tags". So when you add a document to a board, it gets "Tagged" with the name of the board. More on this later.
3) There seem to be 2 components in play. When you add a document to board, there is an "immediate" add in the front-end as well as a normal add when the incremental crawl adds the document in the Search Index. The front-end immediately shows the user that the document is added to a board. This is a very good solution as otherwise the user would have to wait till the incremental crawl has taken place.
Let us have a look at the API now. All the API is doing is adding/removing documents to boards and following/unfollowing boards. Unlike my previous post about modifying relationship signals in the Office Graph, with this API you will not be interfering with your Office Graph relationships so I think you can safely use this API in your solutions. Now lets take a look at what actually happens under the hood:

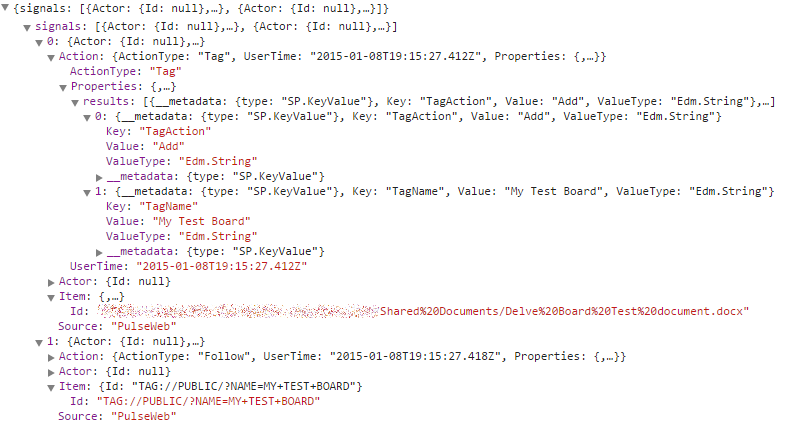

There is a new button introduced in the document card. So when you click on "Add to Board" and select a board from the dropdown, here is the JSON which is sent to the Signals API:
(click to zoom)
Basically, it has 2 Important pieces of data:
1) The document gets tagged with the name of the board. This tag is then used by Delve to search and get all documents belonging to a certain board. This is done by the first object with ActionType:Tag and Item Id as the absolute url of the document.
2) The current user is made to follow the Tag (which is the board name) so that it shows up on the left hand side in Delve. This is done by the second object with ActionType: Follow and Item Id:‘Path=”TAG://PUBLIC/?NAME=MY+TEST+BOARD” where the name of the board I selected was "My Test Board"
If you want to reproduce this exact behavior in your solution, here is the sample code you can start with. Please be aware that that this code only tags the document with the board name so that it is added to the search index and follows the board so that it appears in your boards in Delve. This does not do the front-end add to the board. So you will have to wait for an incremental crawl to run in Office 365 for the document to get added to the board and show up in Delve. I have observed this can take anywhere from 5 to 30 minutes.
Here is the code:
The document will get added to the board:
![]()
Hope you enjoyed this post. I have plans to follow this up with some code samples which show how to remove documents from boards, unfollow boards and some other new functionality. Thanks for reading.
If you want to reproduce this exact behavior in your solution, here is the sample code you can start with. Please be aware that that this code only tags the document with the board name so that it is added to the search index and follows the board so that it appears in your boards in Delve. This does not do the front-end add to the board. So you will have to wait for an incremental crawl to run in Office 365 for the document to get added to the board and show up in Delve. I have observed this can take anywhere from 5 to 30 minutes.
Here is the code:
The document will get added to the board:
Hope you enjoyed this post. I have plans to follow this up with some code samples which show how to remove documents from boards, unfollow boards and some other new functionality. Thanks for reading.
